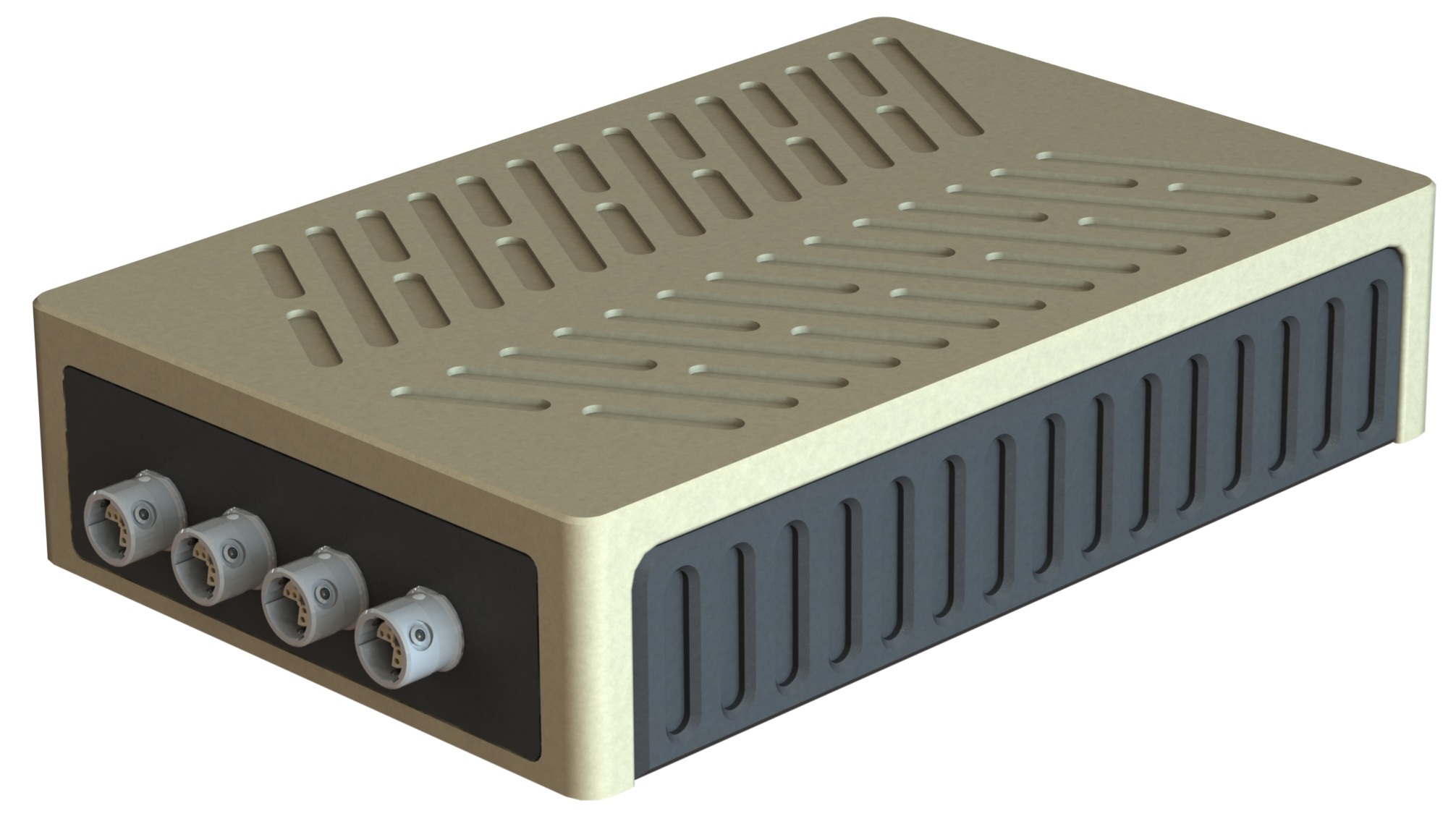

GEMINI



Secure Wireless Platform

 Gemini Secure Wireless Platform – Brochure

Weight: ~15 Ounces / Size: 3.5″ x 5″ x 1″

Rugged, flexible platform for wireless communications supporting IoBT applications. The highly configurable design allows creative, innovative applications using the same proven platform.

Designed and manufactured in the USA.

Wireless Networks

Product supports any two of the following

  • WiFi 802.11AC/B/G/N
  • WiFi 802.11ah HaLow Radio
  • Sub 1GHz Radio
  • Iridium Satellite Modem
  • LTE CAT4 Cellular
  • 5G Cellular

Applications

  • Secure retransmission device
  • Mesh networking and back haul
  • Software-defined radio

Features

  • Processor: NXP i.MX8M Quad Core 1.6GHz ARM Cortex A53
  • RAM: 4GB
  • Power: 8-60VDC Input or PoE
  • Weight: ~1 Pound
  • Operating Temperature: -40C to +85C
  • Operating System: Ubuntu
  • Runs OpenWRT
  • MicroSD
  • Nano SIM
  • Optional: 2x GbE
  • Optional: USB 2.0
  • Optional: Digital and Analog IO
  • Optional: 3-axis Accelerometer
  • Optional: GPS
  • Optional: Tamper Sensor
