TACTICAL GATEWAYS – EDGE  &  CSfC  DEVICES

“the GATE”

“the BOLD”

“the LINK”





Open the door to smooth deployments and streamlined network management



If you need more capabilities at your NOC, or less mess at your branch offices, the Gate is the all-in-one solution you need. At your data center or remote locations, this workhorse connects you to dozens of physical assets while helping virtualize more of your network. Deploy fast, save time, and cut CAPEX & OPEX with the appliance that streamlines network management.

  • Quickly set up all your solutions using one powerful box
  • Get plug-n-play deployments with zero touch provisioning
  • Virtualize more functions & cut your stack with an all-in-one device




Empower all-in-one edge networking with a package that’s smaller, lighter, & bolder



Whether you’re in telecom, retail, or oil & gas, deploy the Bold for the functionality & control you need.

This lightweight box allows you to connect more than a dozen devices & add-ons, so you can deliver robust capabilities throughout your enterprise. The Bold puts you in charge with remote out-of-band management, Secure Access Service Edge, and SD-Branch capabilities.

  • Reduce CAPEX & virtualize your stack
  • Cut support costs & response times with remote out-of-band
  • Set up autonomous networking to prevent downtime




Get the right networking, right where you need it with one powerful little box



The Link brings flexibility to your network operations. Its powerful components deliver customizable networking wherever you need it, while its compact design can be tucked away to save crucial space. Link server rooms, closets, and branch locations to the internet, and get critical services to keep your network running.

  • Deploy fast using zero touch provisioning and the Cloud
  • Stay in control even during outages with OOB via cellular failover
  • Manage every device thanks to vendor-neutral Node Manager software
GATE Specifications
CPU Multi-core Intel x86_64bit CPU
Memory & Storage
8-32GB of DDR4 DRAM, 32GB Hardware Encrypted SSD
Interfaces 8 x RJ45 Serial ports
2 x SFP+ (10G)
1 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45
4 x Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch
4 x PoE+ Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch
2 x GPIO Port
1 x Digital Out Port
1 x Relay Port
2 x USB 3.0 Host on Type A
2 x USB 2.0 Hosts on Type A
1 x Wi-Fi – optional
2 x Cellular Slots with Dual SIM – Optional
1 x HDMI port
Software Specifications
Port Access Direct access by port name, TCP port, device name and IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
1,000+ simultaneous sessions
Port sharing
Command line interface (CLI)
Port custom field support, port icon configuration, port search
Device clustering across multiple Node  units
Break-over SSH support
System Management Extensible automated control based on actionable real-time data
Web GUI management portal, command line interface (CLI), Linux root shell
Zero Touch Provisioning for configuration and firmware updates
Multiple and customizable user levels of access
Auto-discovery via network scan
NTP support, global time zone support
SNMP
Orchestration Integration: Puppet, Chef, Ansible, RESTful, Cloud, and Node Manager
Access Protocols HTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
Device View Options Tree, Table, Geo Map, Node and WEB with search capability
Integrates with Cloud
Security X.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
SSL VPN – Client and Server
IPsec with support for multi sites

Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
Fine grain and role based access control
Firewall – IP packet and security filtering, IP forwarding support
MD5 / SHA System Configuration Checksum™
System event syslog and data logs
Custom security settings
Strong password enforcement
Operating System Built-in 64-bit Linux kernel (Node OS)
Infrastructure Specifications
Power 36V-75 VDC dual power input (redundant)
Power consumption 45W typical
AC Power adapter (add-on), 100-240V~, 1.2A, 50-60Hz, Operating temperature: -25 to 60° C
Physical Front-Rear mounting brackets
Size (L x W x H): 241.3 x 260.35 x 44.45 mm (9.5 x 10.25 x 1.75 in)
Weight: .9 kg (2 lb)
Shipping weight: 3.6 kg (8.0 lb)
Shipping (L x W x H): 349.25 x 374.65 x 177.8mm (13.75 x 14.75 x 7 in)
Environmental Operation: 0 to 60° C (32 to 140° F), 5-95% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 5-95% RH, non-cond.
BOLD Specifications
CPUIntel x86_64 Multi-Core
Memory & Storage
4 GB of DDR3 DRAM, 32 GB SATA SSD
Interfaces8 RJ45 Serial ports
1 RS-232 serial console port on RJ45
1 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45
4 Gigabit (10/100/1000BT) Ethernet interfaces on RJ45 with Built-in Switch
2 USB 3.0 Host on Type A
2 USB 2.0 Hosts on Type A
1 Wi-Fi – optional
2 Cellular Slots with Dual SIM – Optional
1 VGA port
Warranty2 Years
Software Specifications
Port AccessDirect access by port name, TCP port, device name and IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
1,000+ simultaneous sessions
Port sharing
Command line interface (CLI)
Port custom field support, port icon configuration, port search
Device clustering across multiple Node  units
DeviceURL™ bookmarks, FireTrail™ secure tunnels
Break-over SSH support
System ManagementExtensible automated control based on actionable real-time data
Web GUI management portal, command line interface (CLI), Linux root shell
Zero Touch Provisioning for configuration and firmware updates
Multiple and customizable user levels of access
Auto-discovery via network scan
NTP support, global time zone support
SNMP
Orchestration Integration: Puppet, Chef, Ansible, Restful and Node Manager
Access ProtocolsHTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
Device View OptionsTree, Table, Geo Map, Node and WEB with NodeIQ™ natural language search
SecurityX.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
SSL VPN – Client and Server
IPsec with support for multi sites

Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
Fine grain and role based access control
Firewall – IP packet and security filtering, IP forwarding support
MD5 / SHA System Configuration Checksum™
System event syslog
Custom security settings
Strong password enforcement
Operating SystemBuilt-in 64-bit Linux kernel 4.x and Yocto-based CustomKit™ SDK
Infrastructure Specifications
Power12 VDC via external 100–240 VAC, 50/60 Hz adapter
Power consumption 25 W typical
PhysicalFront-Rear mounting brackets
Size (L x W x H): 142 x 201 x 44 mm (5.5 x 7.9 x 1.73 in)
Weight: 1.2 kg (2.6 lb)
Shipping weight: 2.3 kg (5.0 lb)
Shipping (L x W x H): 313 x 313 x 140 mm (12.3 x 12.3 x 5.5 in)
EnvironmentalOperation: -20 to 50° C (-4 to 122° F), 20-90% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.

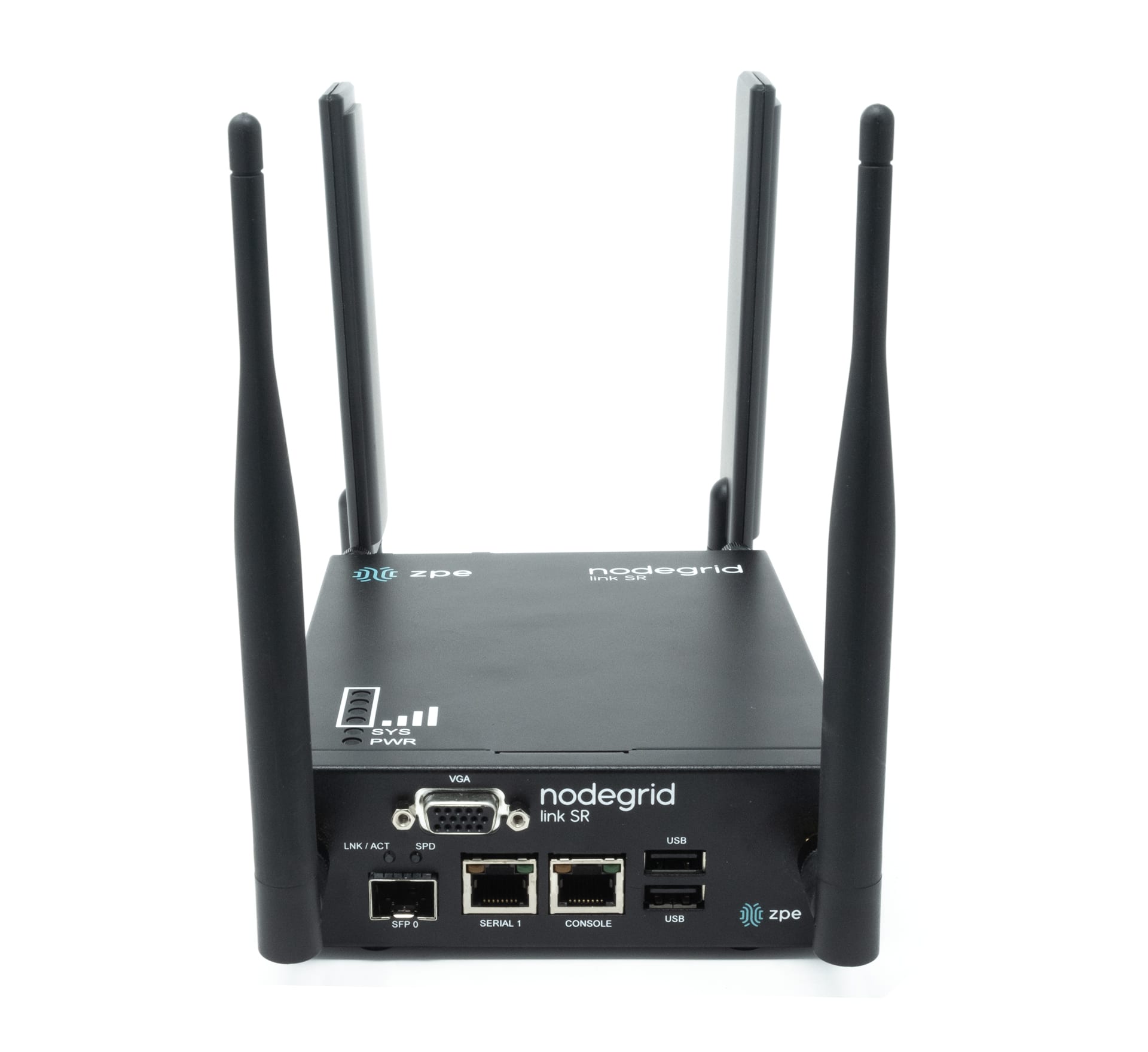

LINK Specifications
CPUMulti-core Intel x86_64bit CPU
Memory & Storage
4-8GB of DDR3 DRAM, 16GB Hardware EncryptedSSD
Interfaces1 x RJ45 Serial Port
1 x SFP (1G)
1 x Gigabit (10/100/1000BT) Ethernet Interface on RJ45 with PoE in
2 x GPIO Port
2 x Digital Out Port
2 x USB 2.0 Hosts on Type A
1 x Wi-Fi – optional
1 x Cellular Slot with Dual SIM – Optional
1 x VGA port
Software Specifications
Port AccessDirect access by port name, TCP port, device name and IPv4/IPv6
High performance port login: <1 sec on SSH, <3 sec on Telnet
350+ simultaneous sessions
Port sharing
Command line interface (CLI)
Port custom field support, port icon configuration, port search
Device clustering across multiple Node  units
Break-over SSH support
System ManagementExtensible automated control based on actionable real-time data
Web GUI management portal, command line interface (CLI), Linux root shell
Zero Touch Provisioning for configuration and firmware updates
Multiple and customizable user levels of access
Auto-discovery via network scan
NTP support, global time zone support
SNMP
Orchestration Integration: Puppet, Chef, Ansible, RESTful, Cloud, and Node  Manager
Access ProtocolsHTTPS, SSHv1 and SSHv2, optional HTTP and Telnet
Device View OptionsTree, Table, Geo Map, Node and WEB with search capability
Integrates with Cloud
SecurityX.509 SSH certificate support, 4096-bit encryption keys
Selectable cryptographic protocols for SSH and HTTPS (TLSv1.2, TLSv1.1, TLSv1)
Selectable cypher suite levels: high, medium, low, custom
SSL VPN – Client and Server
IPsec with support for multi sites

Local, AD/LDAP, RADIUS, TACACS+, Kerberos authentication
Local, backup-user authentication support
User-access lists per port
Group/role-based authorization: AD/LDAP, RADIUS, TACACS+
Fine grain and role based access control
Firewall – IP packet and security filtering, IP forwarding support
MD5 / SHA System Configuration Checksum™
System event syslog and data logs
Custom security settings
Strong password enforcement
Operating SystemBuilt-in 64-bit Linux kernel (Node OS)
Infrastructure Specifications
Power10-57 VDC dual power input (redundant)
Power consumption 20 W typical
PhysicalDIM Rail and Wall Mountable
Size (L x W x H): 170 x 130 x 55 mm (6.69 x 5.11 x 2.16 in)
Weight: 1.04 kg (2.3 lbs)
Shipping weight: 1.58 kg (3.5 lbs)
Shipping (L x W x H): 228.65 x 342.9 x 88.9mm (9 x 13.5 x 3.5 in)
EnvironmentalOperation: 0 to 60° C (32 to 140° F), 20-90% RH, non-cond.
Storage: -20 to 67° C (-4 to 153° F), 10-90% RH, non-cond.

“the LEDGE”

“the OCTAGON”








  • Size: 6” X 4.5” X 1”
  •  USB 3.0 connector: 1
  • USB 2.0 connectors: 4
  • RJ45 10/100/1000 Mbps Ethernet Connector*: 1
  • PCIe x1 connector (optional)
  • 12VDC 2.5mm center pin input power jack
  • Mini-DisplayPort (HDMI capable) connector: 1
  • Reset and system On-Off headers
  • 4A DC-DC Converter (for 3.3V req. in MiniDP & PCIe x1)
  • 5V & 12V fan headers
  • Red 5V & 12V power LED indicator and header
  • Green Card Detect LED indicator and header
  • BioDigitalPC® 100-pin docking connector
  • 4mm mounting holes: 3
  • External 12V PCIe power header
  • *VMWare compatible
  • Headers are standard 0.1″ pitch



Computer Specs (can be changed)



  • Quad core (8v Cores) Intel i7 processor
  • 32GB of DDR4 RAM
  • Powered by 5VDC and consumed between 10W and 15W
  • 4 USB 2.0 and 1 USB 3.0
  • 2 PCIe x1 Gen 3
  • DisplayPort++: servicing DP, HDMI, DVI and VGA
  • Operating Temperature: TBD
  • 1TB NVMe
  • vPro Virtualization Support
  • Trusted Platform Module Version 2.0






  • Size: 6″ x 4.5″ x 2″
  • USB 3.0 connector: 1
  • USB 2.0 connector: 1
  • USB 2.0 header: 1
  • RS-232 headers: 2
  • RJ45 10/100/1000 Mbps Ethernet connectors: 8
  • Provide PoE power: 2
  • 5VDC Power Input Power provided by: 5VDC 2.5mm center positive power jack (or) 0.1″ headers for 5VDC input power: 8
  • Mini-DisplayPort (HDMI capable) connector: 1
  • Reset and System On/Off headers
  • 5V Fan Header
  • Red 5V power LED indicator and header
  • Green Card Detect LED indicator and header
  • BioDigitalPC® 100-pin docking connector
  • 3mm mounting holes: 4



Computer Specs (can be changed)



  • Quad core (8v Cores) Intel i7 processor
  • 32GB of DDR4 RAM
  • Powered by 5VDC and consumed between 10W and 15W
  • 4 USB 2.0 and 1 USB 3.0
  • 2 PCIe x1 Gen 3
  • DisplayPort++: servicing DP, HDMI, DVI and VGA
  • Operating Temperature: TBD
  • 1TB NVMe
  • vPro Virtualization Support
  • Trusted Platform Module Version 2.0


NXGEN -CSfC

GTS’s Mobility and Embedded Technologies (MET) Division has developed an architecture around the GTS NXGEN that enables agencies to securely connect both internal and external users to services without Type-1 Controlled Cryptographic Items (CCI).  This architecture eliminates the need for INE/KG and BB devices on base between buildings, trailers, offices, and other localized groups once the redundant Gateways are in place.



The GTS NXGEN Dual Enclave Single Chassis Baseband Communications System:

  • Replaces 3 chassis with one
  • Consumes 1/3 of the power of current dual enclave systems
  • Compact and light weight and fits in a backpack
    • Less than 5Ibs.
    • 2.6′ x 8′ x 7.5′
  • -20C to +60 C operational temperature range
  • 5 10/100 (4 POE+) ports and 4 GE ports
  • 100% Cisco in both enclaves
  • Ability to zeroize enclave(s)
  • NSA Approved architecture for replacing Crypto (HAIPE) device


Commercial Solutions for Classified is founded on the principle that properly configured, layered solutions can provide adequate protection of classified data in a variety of different applications. NSA develops, approves, and publishes solution-level specifications and provides architectures, component criteria, and configurations to meet Information Assurance (IA) requirements.



As part of Commercial Solutions for Classified, the NSA has developed sets of Capability Packages (CPs) to provide their customers with ready access to the information needed to satisfy their operational requirements. CPs contain product-neutral information that allows customers to successfully implement their solutions.



Current CPs include the Mobile Access CP, Campus WLAN CP, Virtual Private Network (VPN) CP, and Data at Rest CP.  Using the information in the CPs, GTS can create an architecture with specific commercial products configured in a particular manner to support the Government entity’s specific security requirements.



GTS has designed a Commercial Solutions for Classified product and can create an architecture in a clearly defined and approved manner to support the specific Government customer’s specific security requirements.  GTS can assist agency clients to transform their capabilities to deliver and support full dynamic mobility and CSfC secured services.
