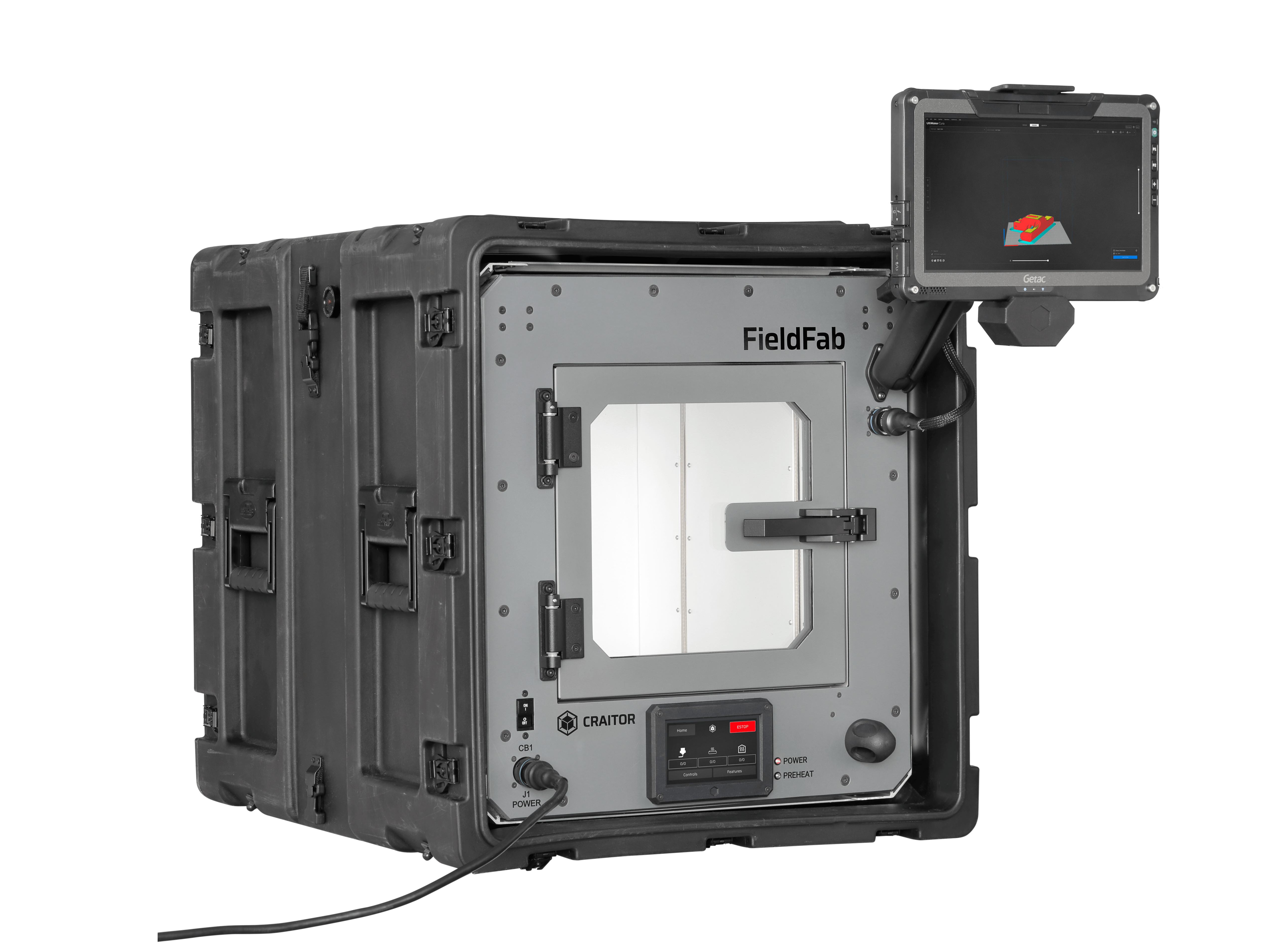

FieldFab EXPEDITIONARY 3D PRINTER
Download the FieldfFab brochure for more information
System Capabilities
- Print continuously, even during ground or sea transport
- Tested in extreme cold (-40°F), extreme heat (122°F),
high humidity, rain, condensation, operational shock, and vibration - Print advanced, high-temperature materials, such as metal replacements (ULTEM), biocompatible parts (PETG), flexible parts (TPU), and standard parts (Nylon, Nylon-CF, etc.)
- Certified to MIL-STD-810H for operation and storage, AS9100D / ISO9001, and Made in USA
- Train completely new operators in as little as 15
minutes with auto-calibration - Modular subsystems enable straightforward repair and maintenance in the field
- Environmental sensors track the printing process to generate quality assurance reports for every part printed
Technical Specifications
3D PRINT SPECIFICATIONS
- Nozzle Temperature < 500°C (932°F)
- Bed Temperature < 200°C (392°F)
- Chamber Temperature < 80°C (176°F)
- Print Volume 280mm × 280mm × 280mm (11.02ʺ × 11.02ʺ × 11.02ʺ)
- Material Support All standard polymer filaments and polymer-based composites
(i.e. ULTEM, TPU, NylonCF, PETG, Nylon, PLA, etc.)
ENVIRONMENTALS
- Temperature Operational -40°C* to 50°C (-40°F* to 122°F)
Storage -40°C to 70°C (-40°F to 158°F)
* automatic system pre-heat enabled - Certifications MIL-STD-810H, AS9100D/ISO9001, Made in USA
INTERFACE AND ELECTRONICS
- Digital Interface GETAC F110 with design suite,
digital data vault access - Power 80—264V, 47—63Hz (AC outlet) Power Consumption 1.2kW peak, 10A max
MECHANICALS
- Housing LMDP plastic exterior, aluminum print shell
- Dimensions 24ʺ × 26ʺ × 39ʺ
- Weight 190 lbs
